Interoperability Applications
LTR/Passport GOB Application
SCHOLER-JOHNSON INC

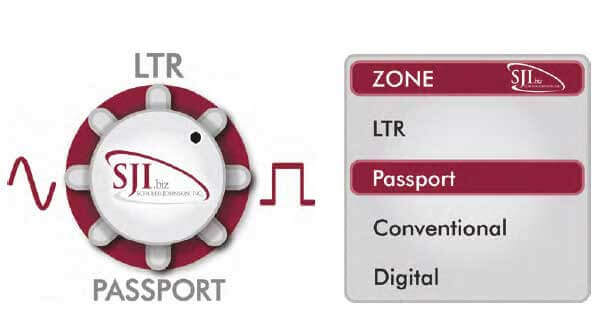

Firmware application for the Generic Option Board to allow the MOTOTRBO radio to support LTR, Classic PassPort and Enhanced PassPort in Analog mode.
Provides a clear migration path from Analog operation to Digital operation for users with existing LTR or PassPort systems/networks.
Key Benefits
- QA01839, available as a factory-installed option in North America.
- Allows users to add digital-capable radios to their existing analog fleet to facilitate migration to digital operation.
- Allows users to operate one radio on MOTOTRBO digital platforms (except for Connect Plus) and Analog LTR and/ or PassPort.
Key Features
- Up to 256 Zones, up to 256 Groups/Channels per Zone.
*Supports over 2000 total Groups/Channels. - Programming via standard MOTOTRBO USB programming cable.
- Field upgradeable via standard MOTOTRBO USB programming cable.
- (LTR/Conventional) Pre-Only MDC PTT ID.
- (LTR/Conventional) User selectable scanning across Zones.
- (LTR/PassPort) User selectable Group Scan.
- (PassPort) Enhanced and Classic operation.
- (Enhanced PassPort) Integrated network Emergency call operation.
- (Enhanced PassPort) Subscriber priority access.
- (Enhanced PassPort) Automatic Channel backup.
- (Enhanced PassPort) Expanded neighbor list.
- (Enhanced PassPort) Message Trunking.
- (Enhanced PassPort) Roam registration on free channel.
System Requirements And Types
- Radio Hardware/Releases Compatibility:
- Analog Capable MOTOTRBO radio with a Generic Option Board installed.
- Interfaces:
- A PC running Windows XP or later is required for programming the
Industries
Fire & Emergency Medical Services, Healthcare. Hospitality, Mining, Oil & Gas, National Government Security, Police, Public Services (non-public Safety Government), Retail, Transportation & Logistics, Utilities.
Application Partner
