Alarm & Telemetry Applications
Safety On Call
CALL24 WIRELESS

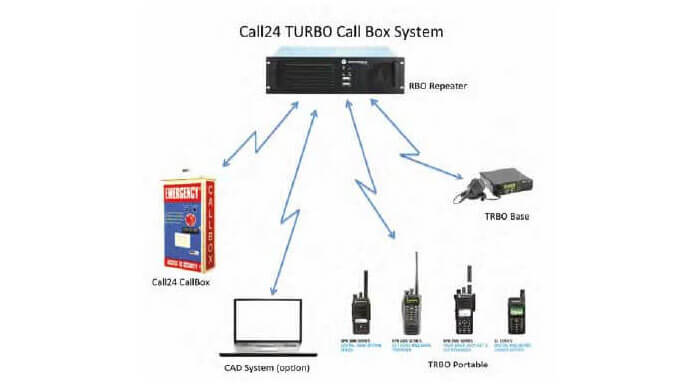

Call24 TRBO is the Call24 interface and operational software that supports Call24 call box integration into MOTOTRBO systems.

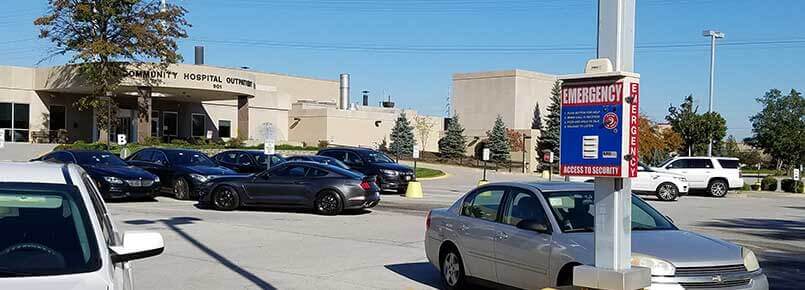

Alarms and security communications are enhanced in schools, healthcare, commercial, industrial, or government sites when using CALL24 call boxes that have been integrated into MOTOTRBO RF Systems.
Key Benefits
- Call24 TRBO provides a quick and easy way to upgrade existing and new Call24 Mk-1 and Mk-III call boxes to digital radio.
- Instant reporting of alarms and security issues to on- or off-site personnel using existing radio infrastructure.
- Mobile or dispatch monitoring and control.
- Allows enhanced functionality to Motorola’s Digital Radios by allowing DTMF control through the radio channel.
- Long-range operation.
- No monthly recurring fees.
- No trenching or boring of communication lines.
- Easily relocated.
Key Features
- Interfaces: XPR or APX series.
- Quick 2 Second Alerting, Quick Two-Way Communications.
- Conventional Digital, IPSC, Capacity Plus, Connect Plus.
System Requirements And Types
Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus & Capacity Max.
Industries
Mining, Oil & Gas, National Government Security, Public Services (non Public Safety Government) Transportation & Logistics, Utilities.
Application Partner
Wireless Alarm & Event Notification Solutions
SEQENT

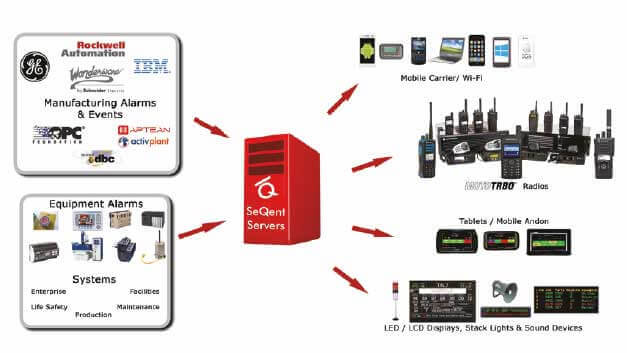

FirstPAGE product family provides a hardware/software bridge between Alarms & Events that occur in Industrial applications, equipment, systems and provides production critical textual information to MOTOTRBO portable and mobile radios, PCs and smartphones with an optional WAVE client installed. This real-time information enables hourly and salaried workers to make better informed decisions that positively impacts productivity, quality and profitability.
Leveraging Industrial manufacturing partnerships with companies like Aptean Activplant, GE, Rockwell Automation and Schneider Electric allows SeQent to integrate with their products and indirectly connect them to the MOTOTRBO platform. This is a key differentiator from other ADP solution providers and is aligned with Motorola Solutions corporate Industrial Internet of things (IIoT) strategy.
Key Benefits
- Increased Productivity.
- Reduced Unplanned Downtime.
- Increased Product Quality.
- Improved Decision Making.
- Increased Profitability.
- Connectivity & Interoperability.
- Aligns with Mobility & Industrial Internet of Things (IIoT) Strategies.
Key Features
- Automated message throttling to preserve radio network bandwidth.
- Radio ID validation.
- SNPP login security.
- E-Mail/SMTP Input.
- Automatic service startup.
- Highly scalable.
- Presence notification monitoring.
- Message traceability.
- Delivery to SUID (portables/mobiles) or TGID (Talk groups).
System Requirements And Types
- Radio Hardware/Releases Compatibility:
- Connect Plus - XRC 9000 or XRC 9100.
- non-Connect Plus - XPR 8380, XPR 8400, SLR 5000.
- Computer Hardware/ Operating Systems:
- Windows 2K8, Windows 2K8R2, Windows 2K12, Windows 2K3, Windows 8.x, Windows 7.x.
- Compatible with Conventional, Capacity Plus, Capacity Max, Linked Capacity Plus, IP Site Connect and Connect Plus.
Industries
Mining, Oil & Gas, Manufacturing, Transportation & Logistics.
Application Partner
The Radio Got Smarter
TRBOnet/NEOCOM SOFTWARE
TRBOnet software for Generic Option Board enhances digital radio network with automated telemetry and emergency response as well as helps to receive detailed data uninterruptedly with minimum time intervals possible.
Swift Event logic consists of three main components – Events, Conditions and Actions.
A radio unit can operate in a more self-sufficient manner thanks to the product. Control and monitoring is possible without connectivity to the RF system or if the dispatcher is not available. If undesirable activities are detected the radio unit can send a report to the dispatch console.
Key Benefits
- Increase radio unit self-sufficiency by programming it with Geofence zones and rules that govern speed and location control.
- Switch between channels automatically when changing zones or when a specific activity is detected for continuous connectivity.
- Customize radio tones, activate built-in telemetry and display messages for effective notifications.
- Conserve the RF capacity - frequent GPS updates are not required since the radio saves all data and monitors itself.
Key Features
- Man Down/No Movement monitoring
- Lone Worker monitoring.
- Georoaming & Geofence for uninterrupted connectivity and location safety.
- GPS Store and Forward.
- Data storage in case of connection loss or unavailable RF channels.
- Programmable sequence of actions for automated response.
- Data transfer operations.
System Requirements And Types
- Compatible with IP Site Connect, Capacity Plus and Linked Capacity Plus 2.5 or above.
- Compatible with Capacity Max.
Industries
Fire and Emergency Medical Services, Hospitality, Mining, Oil & Gas, Police, Transportation & Logistics, and Utilities
Application Partner
SCADA Applications Over MOTOTRBO
TALLYSMAN WIRELESS INC.
The Tallysman TW200 SCADA Device provides secure and reliable end-to end SCADA and Telemetry communication over Motorola MOTOTRBO™ radio systems. The TW200 provides serial port (RS232) pass-thru connectivity for Remote Terminal Equipment (RTU) and Supervisory Control and Supervision systems (SCS).
The TW200 support 300 byte data payloads. Transmissions are triggered in response to a SCS poll or an autonomous alarm event triggered by an RTU. The time to complete a typical system poll and receive a RTU response is less than 3 seconds.
The SCS Control Station radio is configured to “broadcast” messages in a point to multi-point configuration. RTUs receive all messages and respond only if the data payload addressing matches their own.
Key Benefits
- Wireless Communication to RTUs.
- Simple installation.
- Low-cost wireless solution.
Key Features
- Polling or autonomous event reporting.
- Protocol independent.
- Secure Communication maintained by a watchdog timer.
- Transmissions triggered on ETX or character time-out.
- All MOTOTRBO network configurations supported.
System Requirements And Types
- Radio Hardware/Releases Compatibility:
- XPR 4000, 5000, 6000, 7000 series compatible.
- Compatible with IP Site Connect, Capacity Plus, Linked Capacity Plus 2.3 or above.
- Compatible with Connect Plus 1.4 or above.
- RS232 connectivity to RTUs.
Industries
Mining, Oil & Gas, National Government Security, Utilities.
Application Partner
